Aqua Lung Legend Elite Regulator

$1,099.00

This product is sold out



The LEG3ND ELITE gives divers unprecedented capabilities by providing perfect precision and enhanced ergonomics at your fingertips. Advanced divers appreciate the independent micro adjustments to fine-tune their own individual breathing preferences.​



Features

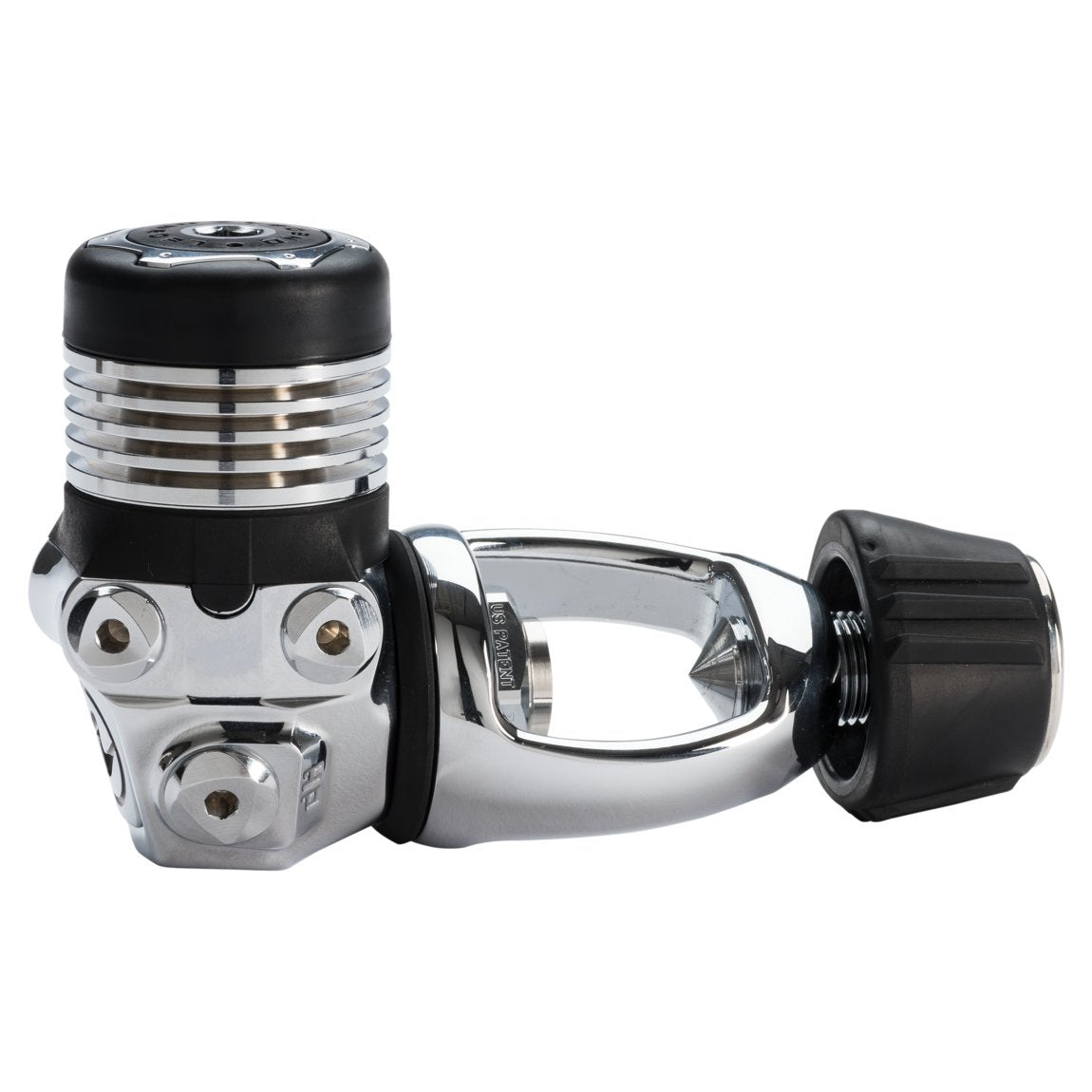

First Stage

  • When the first stage is not connected to a cylinder valve, the Auto Closure Device (ACD) keeps the inlet shut to protect the first stage internal parts from contamination and corrosive water.
    • Preserves the internal lubrication
    • Keeps the inlet filter clean and dry
    • Safer for elevated percentages of oxygen
  • Exceptional cold-water performance is achieved by modernizing Aqualung's three anti-freeze properties:
    • Where there's no moisture, there's no ice: The LEG3ND's integrated dry chamber keeps inner components clean and dry by isolating them from the outside environment
  • Deep ribs create a large heat exchange surface area that helps to prevent ice forming on the mechanism (+30% vs Glacia / +70% vs Legend 2)
  • The new over molded cap delays ice forming over the external diaphragm
  • Auto-Balanced (also known as Over-Balanced)
  • Progressive increase of the working pressure to maintain optimum breathing efforts: Depending on the diver's depth, the working pressure of the first stage is automatically elevated to counteract the increased breathing air density
  • Ergonomically shaped DIN and YOKE screws made of a bi-material “Soft Grip” surface provide a better hold when installing or removing the first stage – especially with cold hands
  • Channeled YOKE screw to prevent water retention.
  • Specialized ACD Dust cap attached to the regulator body to protect the inlet fitting and the ACD system from impacts or damage
  • Perfectly positioned HP and MP ports provide optimal hose routing

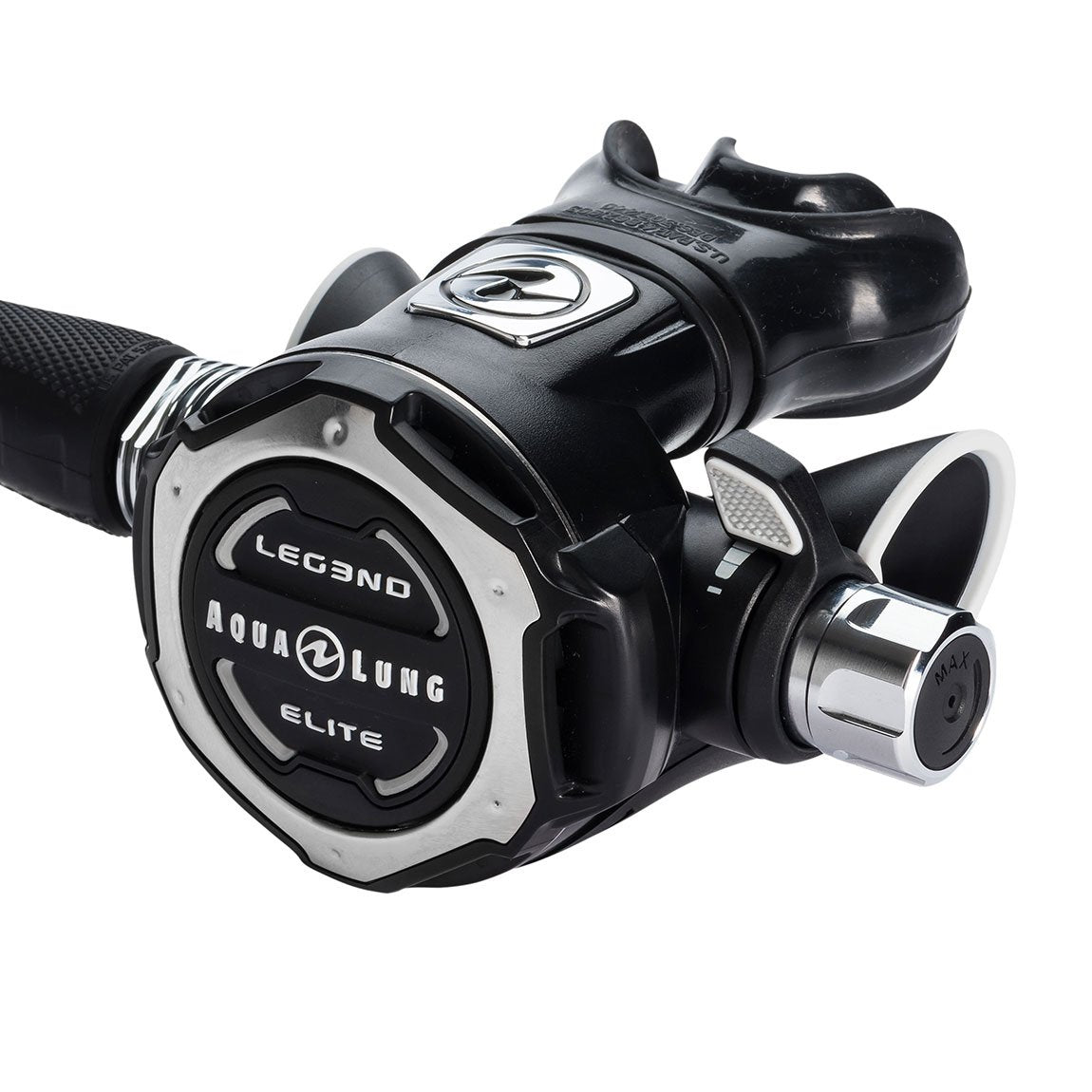

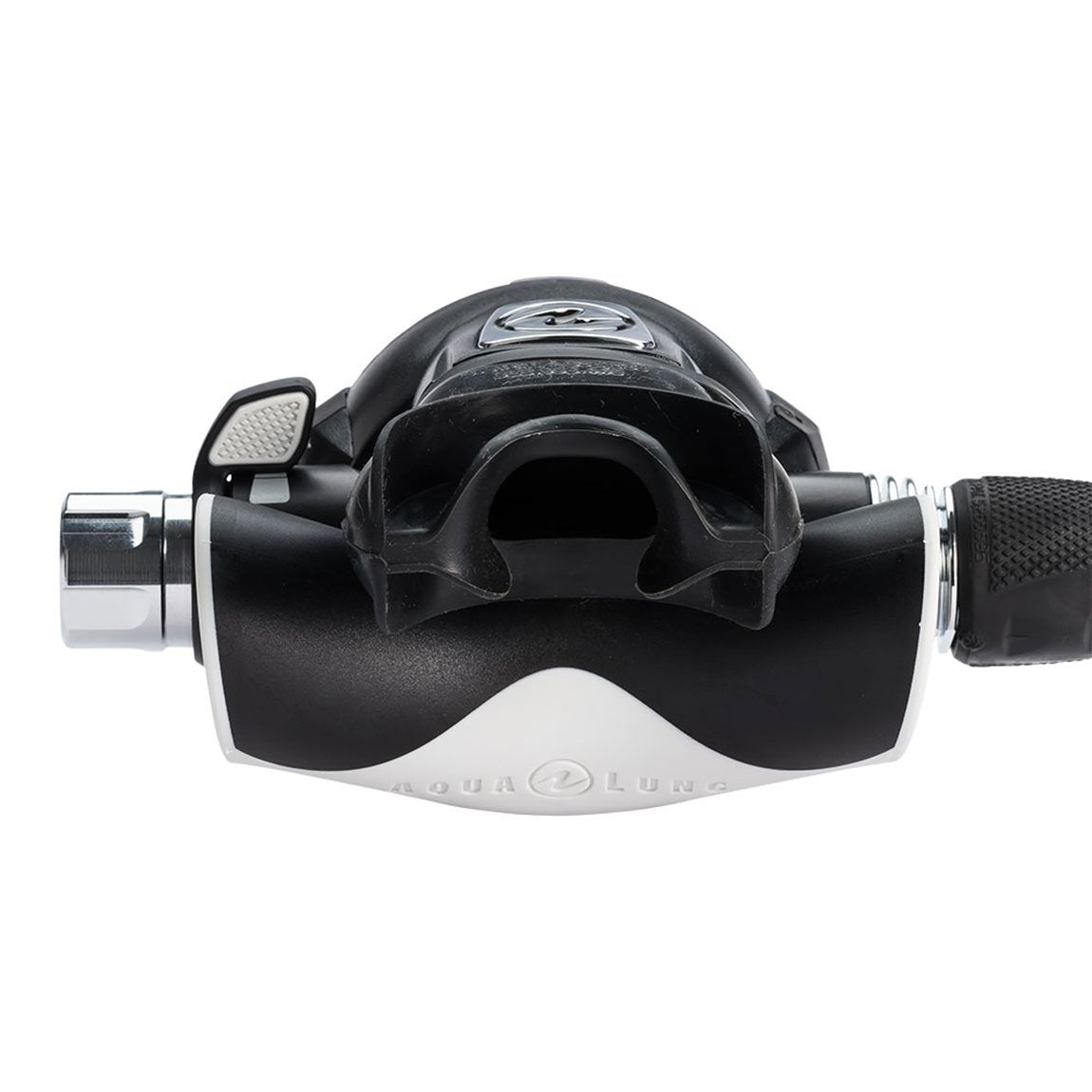

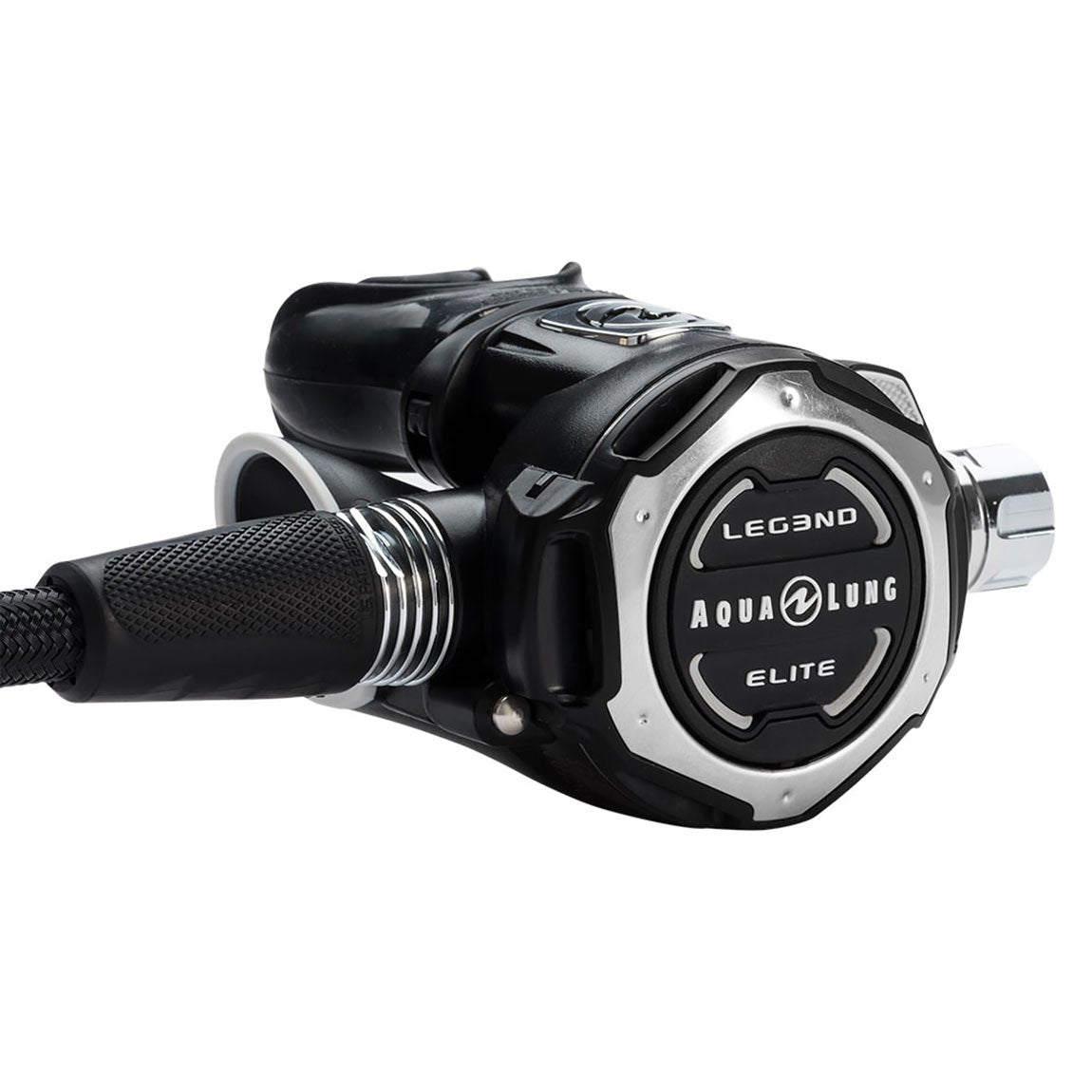

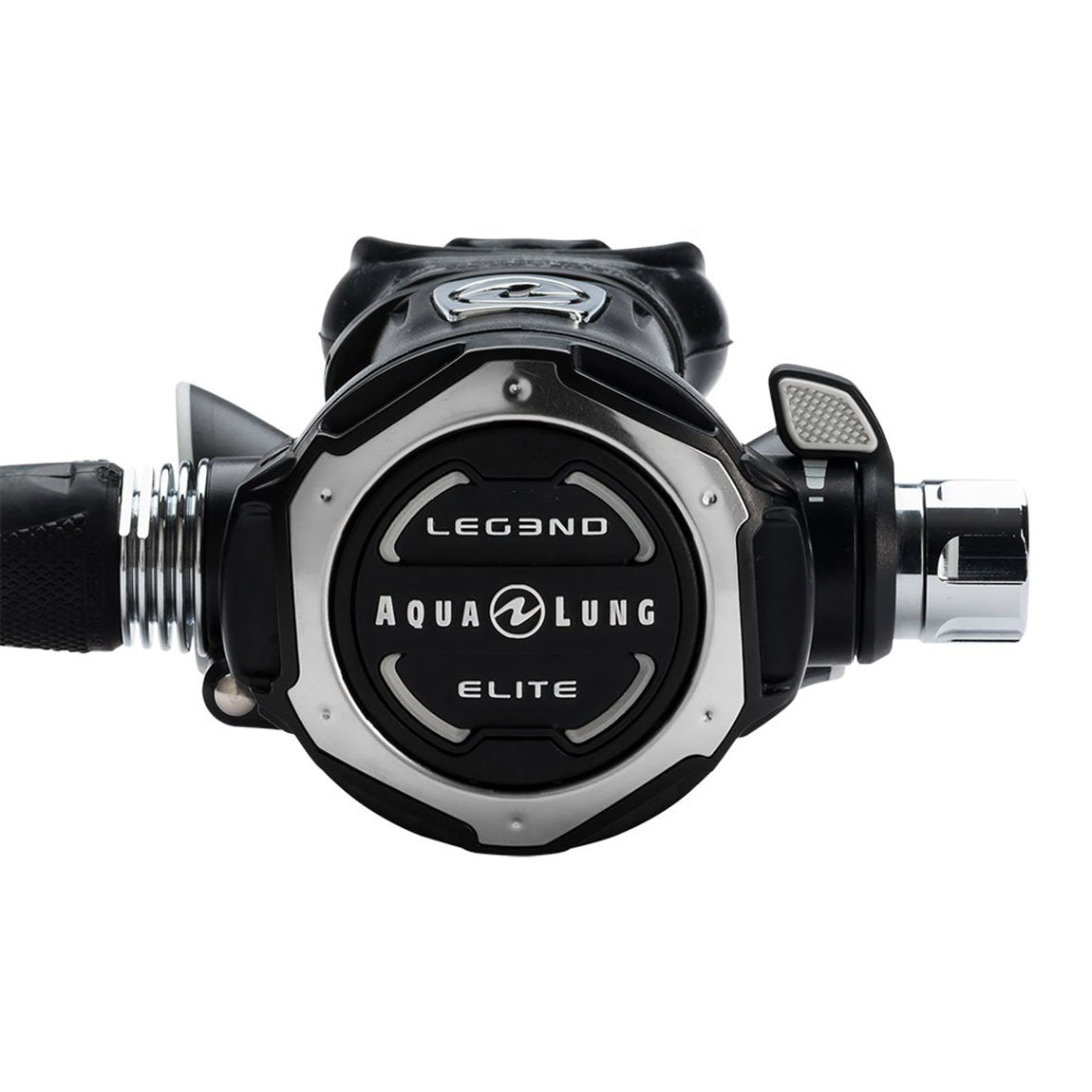

Second Stage

  • New front cover opening channels allow water to flow sideways over the diaphragm
    • Radial openings to prevent free flows when diving in stronger currents
    • Openings widened to reduce peak inspiratory flow by an impressive 20%
  • New over molded exhaust cover made of elastomer with a “soft touch” effect
  • Over molded air purge
    • Wide surface area makes regulator purging easier
    • Purge depth controller optimizes air flow with minimal effort
  • The Patented Comfo-bite mouthpiece reduces jaw fatigue and secures the second stage more comfortably.
  • Detachable and reusable mouthpiece clamp allows a quick and simple tool-free mouthpiece change without plastic waste.
  • The enlarged heat exchanger helps to prevent freezing of the second stage mechanism
  • Air channel deflector
    • Directs the air flow evenly during the inhalation phase
    • Streamlined bi-material deflector lowers the exhalation effort
  • Flexible and lightweight Aqua Flex hose with dual protectors

Specs

First Stage

  • Overbalanced diaphragm design
  • Auto-Closure Device (ACD) to help prevent accidental flooding of the 1st stage
  • 2 HP ports
  • 4 LP ports
  • 1st Stage Flow Rate of 1500 l/min
  • 1st Stage Weight in DIN 747 g
  • 1st Stage Weight in Yoke 957 g
  • Permanent Environmentally sealed
  • Chrome over marine brass exterior


Second Stage

  • Pneumatically balanced
  • Venturi switch
  • Adjustable Breathing resistance
  • 2 Comfo-Bite mouthpieces, one installed, and a standard with bite wings in the box
  • Lip shield
  • Heat Exchanger for freezing resistance
  • 2nd Stage Weight 227 g/8 oz
  • Hose length 730 mm/29 in
  • Overall work of breathing (WOB) scores     Avg. 0.70 joules/liter
  • Nitrox compatible up to 40% O2 when new, out of the box
